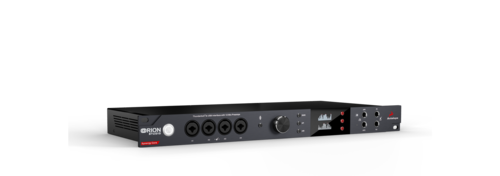

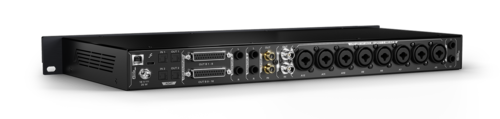

כרטיס קול מחברת Antelope Audio דגם Orion Studio Synergy Core

מעבד DSP פנימי לוקח על עצמו את כוח העיבוד מהמחשב.
12 כניסות קומבו,4 מקדימה ו-8 מאחורה.
הרחבה לעוד 16 כניסות Adat,
16 יציאות.
2 יציאות לאוזניות.
2 יציאות reamp לשימוש במנגנון ההדמיה של הכרטיס.
070-Orion Studio Syn
מחיר: 10,608 ₪
איסוף עצמי: 0 ₪
למה לקוחות קונים אצלנו:
  • אפשרות לעד 10 תשלומים (ועד 5 תשלומים ללא ריבית)
  • קניה מאובטחת ושירות לקוחות מעולה
קניה בטוחה
שאלו אותנו על המוצר

מה כוללת הערכה

  • Orion Studio Synergy Core Interface
  • Quick Start Guide
  • Inline External Power Supply Unit
  • USB Cable

פרטים טכניים

פרטי המוצר
  • Analog & Digital Connectivity
  • • 14 x 24 Rackmount audio interface with Thunderbolt & USB connection for Mac/Windows;
  • • 12 Discrete ultra-linear preamps with 75dB of gain on combo XLR jacks for studio-quality recordings. All work as microphone/line/Direct-In inputs, and four of them are Hi-Z compatible. All preamps are fully DC-coupled;
  • • Two analog inserts (applied to preamp 1 and 2) to connect analog gear without the need to do additional routing in the DAW or in the control panel;
  • • 16 DC-coupled analog output channels over a D-Sub 25 connector allowing control of modular synthesizers;
  • • Two reamp outputs on TRS ¼ jacks for further amp processing of guitar signal;
  • • Thunderbolt 3 (up to 32 channels) and USB 2.0 (up to 24 channels) ports for native DAW application with custom macOS & Windows drivers;
  • • Digitally expandable over ADAT (up to 16 channels) and SPDIF (up to 2 channels);
  • • Two stereo headphone outputs;
  • • Two monitor outputs that can work both in parallel or in A/B mode.
  • Clocking & Conversion
  • • Proprietary 64-bit Acoustically Focused Clocking technology for increased width, separation, and detail in musical performances;
  • • Proprietary Jitter Management algorithm delivering truthful and expanded soundstage;
  • • High-resolution A/D and D/A conversion ensuring artefact-free recordings and mastering-grade converter with 130dB headroom for critical listening without coloration or signal degradation.
  • Real-Time Effects Processing
  • • Collection of 50 analog-modeled effects featuring classic as well as rarely emulated compressors, EQs, mic preamps, and guitar amps and cabs;
  • • 6×DSP, 2×FPGA Synergy Core proprietary onboard real-time platform for effects processing with imperceptible latency;
  • • Up to 128 effects instances per session loaded simultaneously on 32 individual virtual racks.
  • Workflow-Enhancing Features
  • • Advanced digital Routing Matrix that allows execution of complicated input/output routing with a simple drag and drop functionality;
  • • 4 mixers with 32 channels each for creating individual cue mixes and sub-mixes, allowing you to distribute headphone mixes for your musicians while applying pan, reverb, other effects and stereo link;
  • • Customizable presets complete with signal routing, level adjustments, mixer settings and sub-mixes;
  • • Direct hardware monitoring with effects, processed in real-time with imperceptible latency;
  • • Direct-In function allowing you to bypass the preamp architecture and record directly through the converter;
  • • Fully DC-coupled I/O to control and receive CV from modular synths;
  • • Easily accessible talkback with built-in microphone;
  • • Front panel with volume knob with selectable sources and functional buttons;
  • • Option to work without being connected to a computer (standalone operation);
  • • Wireless control of software features from a separate computer connected to the same network.
