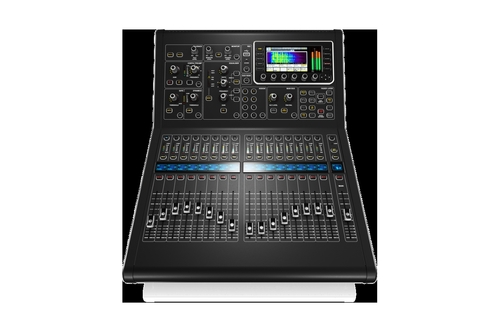

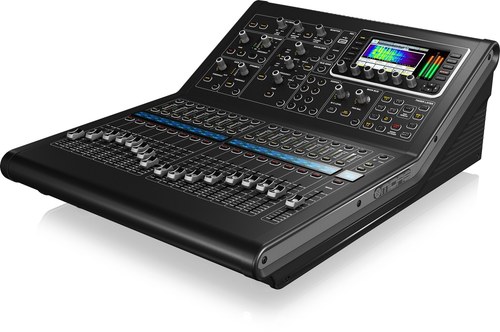

מיקסר דיגיטלי MIDAS M32R LIVE – 40 ערוצים, 16 קדם-מגברי MIDAS PRO

מיקסר דיגיטלי להופעות חיות ואולפני הקלטות.

עד 40 כניסות,

25 MixBus

16 Mic Preamp Midas Pro

8 מנועי אפקט סטריאופנים ניתנים לניתוב לערוצים, ליציאות ולגרופס.

עשרות פלאגינס של אפקטים ברמה הגבוה ביותר מוכנית לשימוש במיקסר.

חיבוריות רחבה לקופסאות במה, מוניטורים אישיים ועוד.

  • 40 ערוצי כניסה ו־25 Mix Buses
  • 16 קדם-מגברי MIDAS PRO
  • הקלטה רב-ערוצית 32×32 דרך USB
  • 8 מנועי אפקטים פנימיים
  • חיבור AES50 למערכות Stage Box
  • מתאים להופעות, הפקות חיות ואולפן
M32R-LIVE
מחיר: 12,750 ₪
איסוף עצמי: 0 ₪
זמן אספקה: 7 ימי עסקים , קיימת אפשרות לאיסוף עצמי
למה לקוחות קונים אצלנו:
  • אפשרות לעד 10 תשלומים (ועד 5 תשלומים ללא ריבית)
  • קניה מאובטחת ושירות לקוחות מעולה
קניה בטוחה

מידע נוסף

  • Live performance and studio recording digital console with up to 40 simultaneous input channels

  • 16 award-winning Midas PRO microphone preamplifiers

  • 25 time-aligned and phase-coherent mix buses

  • AES50 networking allows up to 96 inputs and 96 outputs

  • 32 bi-directional channels of live recording/playback on dual SD/SDHC (cards not included)

  • Up to 3 hours of 32 channel PCM recording in one session - stored as uncompressed WAV files

  • High-performance aluminium and high-impact steel structure

  • Rack mount brackets included for ultimate flexibility

  • 40 bit floating point digital signal processing

  • 8 DCA and 6 mute groups

  • 8 digital signal processing effects engines

  • 17 Midas PRO motor faders

  • Daylight viewable 5" full colour TFT display screen

  • 32 x 32 channel USB 2.0 audio interface

  • DAW remote control emulations of Mackie Control and HUI protocols

  • Optional wireless remote control with Midas Apps for iPhone and iPad

  • Auto-ranging universal switch-mode power supply

מאפיינים עיקריים

  • מידות
  • רוחב 47.8 ס"מ
  • עומק 61.7 ס"מ
  • גובה 20.8 ס"מ
  • משקל 14.3 ק"ג

פרטים טכניים

פרטי המוצר
  • Processing
  • Input Processing Channels - 32 Input Channels, 8 Aux Channels, 8 FX Return Channels
  • Output Processing Channels - 16-Aug
  • 16 aux buses, 6 matrices, main LRC - 100
  • Internal Effects Engines (True Stereo / Mono) - 16-Aug
  • Internal Show Automation (structured Cues / Snippets) - 500 / 100
  • Internal Total Recall Scenes (incl. Preamplifiers and Faders) - 100
  • Signal Processing - 40-Bit Floating Point
  • A/D Conversion (8-channel, 96 kHz ready) - 24-Bit, 114 dB Dynamic Range, A-weighted
  • D/A Conversion (stereo, 96 kHz ready) - 24-Bit, 120 dB Dynamic Range, A-weighted
  • I/O Latency (Console Input to Output) - 0.8 ms
  • Network Latency (Stage Box In > Console > Stage Box Out) - 1.1 ms

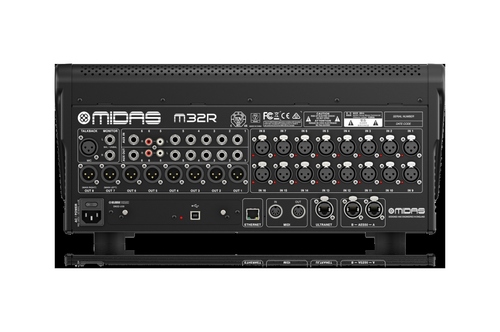

  • Connectors
  • MIDAS PRO Series Microphone Preamplifier (XLR) - 16
  • Talkback Microphone Input (XLR) - 1
  • RCA Inputs / Outputs - 2-Feb
  • XLR Outputs - 8
  • Monitoring Outputs (XLR / ¼" TRS Balanced) - 2-Feb
  • Aux Inputs/Outputs (¼" TRS Balanced) - 6-Jun
  • Phones Output (¼" TRS) - 1 (Stereo)
  • AES50 Ports (KLARK TEKNIK SuperMAC) - 2
  • Expansion Card Interface - 32 Channel Audio Input / Output
  • ULTRANET P-16 Connector (No Power Supplied) - 1
  • MIDI Inputs / Outputs - 1-Jan
  • USB Type A (Audio and Data Import / Export) - 1
  • USB Type B, rear panel, for remote control - 1
  • Ethernet, RJ45, rear panel, for remote control - 1
  • Mic Input Characteristics
  • Design MIDAS PRO Series
  • Non-Clip Maximum Input Level - +23 dBu
  • Phantom Power (Switchable per Input) - +48 V
  • CMRR @ Unity Gain (Typical) - >70 dB
  • CMRR @ 40 dB Gain (Typical) - >90 dB
  • Dynamic Range, Analogue In to Analogue Out - 106 dB 22 Hz-22 kHz, unweighted
  • A/D Dynamic Range, Preamplifier and Converter (Typical) - 109 dB 22 Hz-22 kHz, unweighted
  • D/A Dynamic Range, Converter and Output (Typical) - 109 dB 22 Hz-22 kHz, unweighted
  • Crosstalk Rejection @ 1 kHz, Adjacent Channels - 100 dB
  • Output level, XLR Connectors (Nominal / Maximum) - +4 dBu / +21 dBu
  • Non-Clip Maximum Input Level, TRS Connectors - +21 dBu
  • Output Level, TRS (Nominal / Maximum) - +4 dBu / +21 dBu
  • Phones Output Impedance / Maximum output Level - 40 O / +21 dBu (Stereo)
  • Display
  • Main Screen - 5" TFT LCD, 800 x 480 Resolution, 262k Colours
  • Channel LCD Screen - 128 x 64 LCD with RGB Colour Backlight
  • Main Meter - 18 Segment (-45 dB to Clip)
  • Power
  • Switch-Mode Power Supply
  • Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%
  • Power Consumption - 70 W
  • Physical
  • Standard Operating Temperature Range - 5°C – 40°C (41°F – 104°F)
